Long-spout washbasin mixer, 240 mm high — FIMA Slide F5801L

FIMA Slide F5801L — selection and specifications

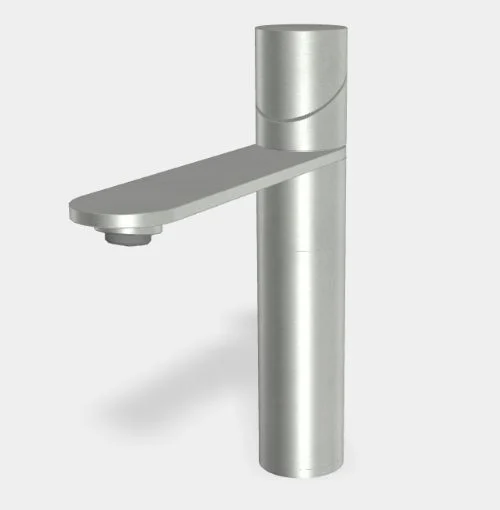

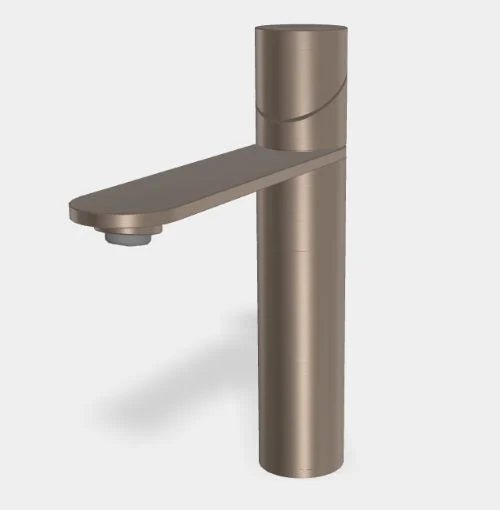

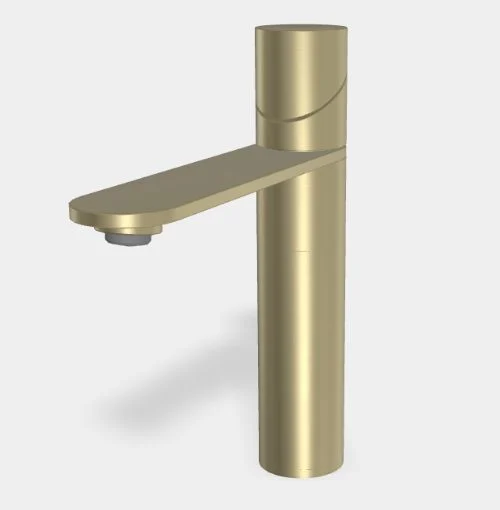

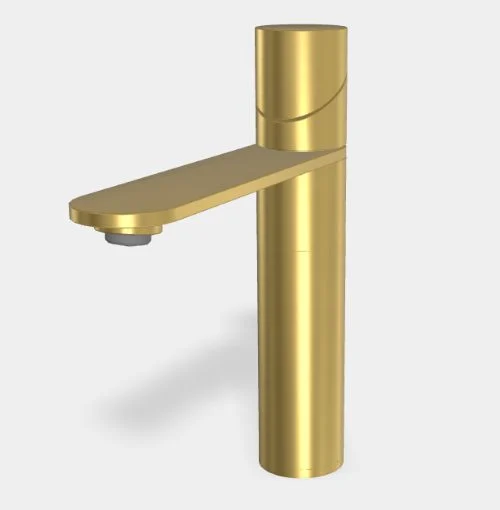

Washbasin mixer with cold-water opening and two supply hoses. Choose the body finish and the version with or without a waste. The version with a waste includes a 1¼-inch stainless-steel click-clack waste; the version without a waste does not include it.

Dimensions and connections

• Overall height above the deck: 240 mm.
• Spout outlet height: 160 mm; distance from mixer axis to water outlet: 161 mm.
• Installation hole: Ø35 mm; body diameter: Ø48 mm.
• Maximum deck thickness: 40 mm.
• Supply connections: G⅜ inch.
• Maximum flow rate at 3 bar: 5 litres/minute.
• Waste, where included: G1¼ inch, Ø65 mm cap; the drawing indicates a clamping range of 5–67 mm.

Before choosing this model, check the hole position, deck thickness, basin-edge clearance and compatibility of the waste system. Compare the dimensions against the official technical drawing. The flow-rate measurement at 3 bar does not specify the maximum working pressure.

Handle customisation

The standard handle matches the mixer finish. FIMA offers separately ordered F1420 handles in marble, wood and resin. These components are sold separately and are not included in the mixer price. Check the exact specification of the chosen handle before ordering.

Technical documents

• Technical drawing
• Technical drawing in DWG
• Spare parts
