SIMONSWERK TE 540 3D FR – Concealed door hinge
Price range: €108.70 through €175.86 pc
The hinge stays concealed when the door is closed, giving the door and frame a clean appearance.
Price per 1 hinge. Availability and lead time are confirmed before ordering. Match the model, door preparation and finish code; accessories are supplied separately unless stated.

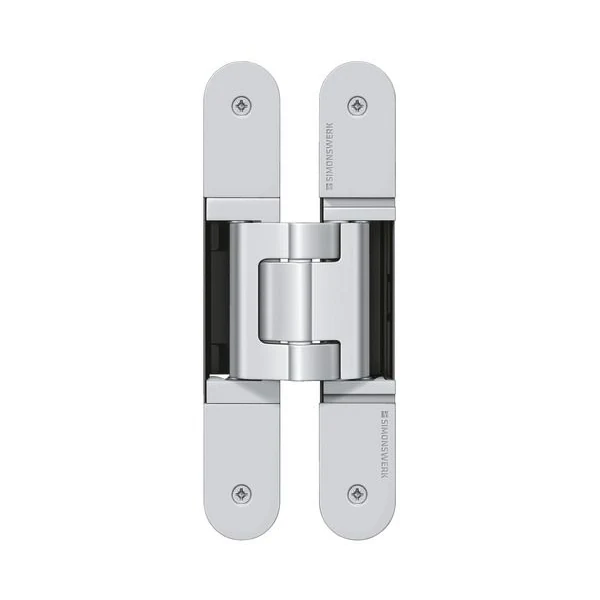

Model reference photograph. The ordered finish is defined by the selected SW code.
SIMONSWERK TE 540 3D FR – Concealed door hinge
The hinge stays concealed when the door is closed, giving the door and frame a clean appearance.
Choosing the right version
- The FR version incorporates intumescent protection. Fire suitability depends on certification of the complete door assembly.
Adjustable alignment allows the installer to set the door position. Follow the manufacturer’s adjustment instructions and ranges.
Technical specifications
| Load capacity | 120,0 kg |
|---|---|
| Overall height | 200,0 mm |
| Width (door leaf part) | 32,0 mm |
| Width (frame part) | 32,0 mm |
| Minimum door thickness | 40,0 mm |
| Cutter diameter | 24,0 mm |
| Guide ring diameter | 30,0 mm |
| Opening angle | 180° |
| 3D adjustment | lateral +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm |
| Frames | Timber, steel or aluminium; verify fixing accessories |
| Bearings | Maintenance-free |
| Handing | DIN right and left |
The reference load is for two hinges on a 1 × 2 m door. Door dimensions, weight distribution, closers and service conditions affect hinge selection. Consult the manufacturer’s technical information.
Finish, order code and sales unit
Select the required finish to see its SAP code and price. The price applies to 1 hinge. The product image identifies the model; the finish shown is indicative. The selected SW code defines the ordered finish.
| Finish | SAP code |
|---|---|
| SW 168 – Bronze metallic | 500003949 |
| SW 124 – Satin chrome look F1 | 500003944 |
| SW 126 – Stainless steel look | 500003946 |
| SW 174 – Bronze finish | 500003950 |
| SW 175 – Light bronze finish | 500003951 |
| SW 176 – Dark bronze finish | 500003952 |
| SW 038 – Polished nickelled | 500003941 |
| SW 125 – Satin nickel look F2 | 500003945 |
| SW 144 – Satin nickel | 500003947 |
| SW 030 – Polished brassed | 500003940 |
| SW 047 – Satin brassed | 500003942 |
| SW 107 – Matt black RAL 9005 | 500003943 |
| SW 070 – Traffic white RAL 9016 | 500005615 |
| SW 156 – Rustic Umber | 500003948 |
Before ordering
Availability and lead time are confirmed before ordering. Match the model, door preparation and finish code; accessories are supplied separately unless stated.
Official technical documentation
SIMONSWERK product data, drawings and installation documents
| SIMONSWERK finish | SW 030 – Polished brassed, SW 038 – Polished nickelled, SW 047 – Satin brassed, SW 070 – Traffic white RAL 9016, SW 107 – Matt black RAL 9005, SW 124 – Satin chrome look F1, SW 125 – Satin nickel look F2, SW 126 – Stainless steel look, SW 144 – Satin nickel, SW 156 – Rustic Umber, SW 168 – Bronze metallic, SW 174 – Bronze finish, SW 175 – Light bronze finish, SW 176 – Dark bronze finish |
|---|---|
| BRAND | SIMONSWERK |
