SIMONSWERK TECTUS TE 340 3D Concealed Hinge
Price range: €68.52 through €117.81 pc
Concealed hinge with 3D adjustment for flush doors. Choose from 15 SIMONSWERK finishes, each with its own image, SAP code and price.
Price per 1 hinge. Reference load capacity 80 kg with 2 hinges on a 1 × 2 m leaf. Confirm availability and lead time before ordering.
TECTUS TE 340 3D: concealed hinge for flush doors
The SIMONSWERK TECTUS TE 340 3D concealed hinge keeps the door line clean when the leaf is closed. Choose from 15 available finishes: the image, SAP code and price update with your selection.
Technical specifications
| Reference load capacity | 80 kg using 2 hinges on a 1 × 2 m door leaf |
|---|---|
| Overall height / leaf and frame part width | 160 mm / 28 mm |
| Minimum door thickness | 36 mm |
| Opening angle | 180° |
| 3D adjustment | Side ±3 mm; height ±3 mm; compression ±1 mm |
| Handing | DIN left and right |
| Frames | Timber, steel or aluminium; check compatible receivers |
| Bearings | Maintenance-free |
Price and selling unit
The price is for one hinge and varies by finish. Factory packaging contains 2 pieces. The prices below apply to 1–50 pieces of the same SAP code, excluding VAT. For 51 or more pieces of the same SAP code, request a quantity quotation; quantity pricing is not applied automatically in the basket.
| Finish | SAP code | Unit price, excluding VAT |
|---|---|---|

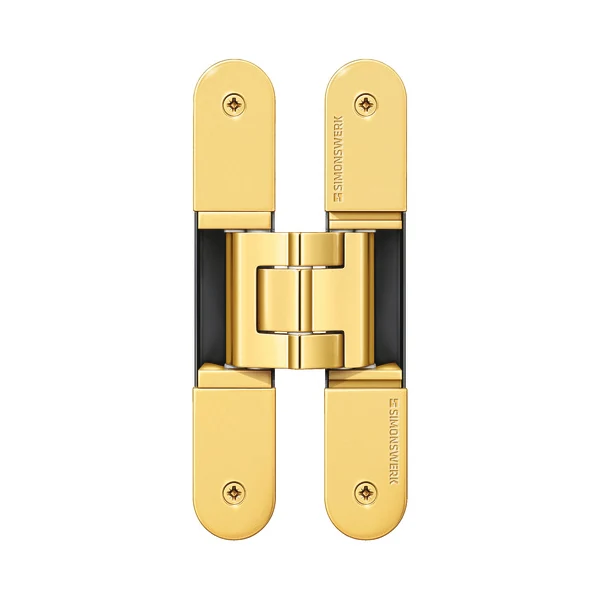

| SW 030 – Polished brassed | 500003787 | €128.75 |

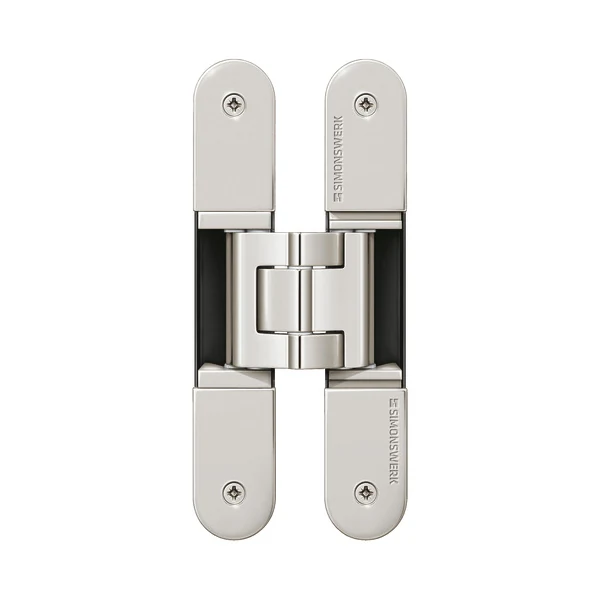

| SW 038 – Polished nickelled | 500003789 | €128.75 |

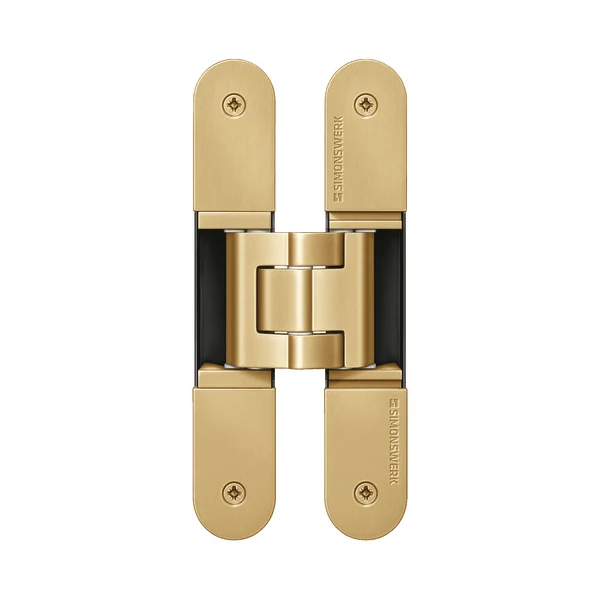

| SW 047 – Satin brassed | 500003790 | €128.75 |

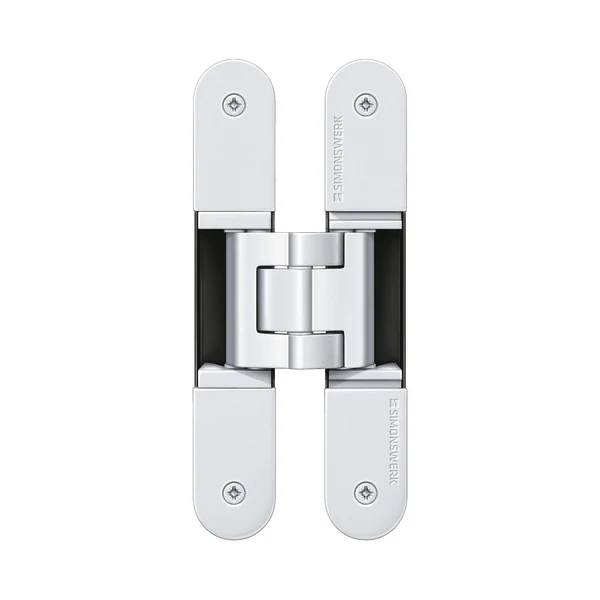

| SW 070 – Traffic white RAL 9016 | 500003791 | €88.58 |

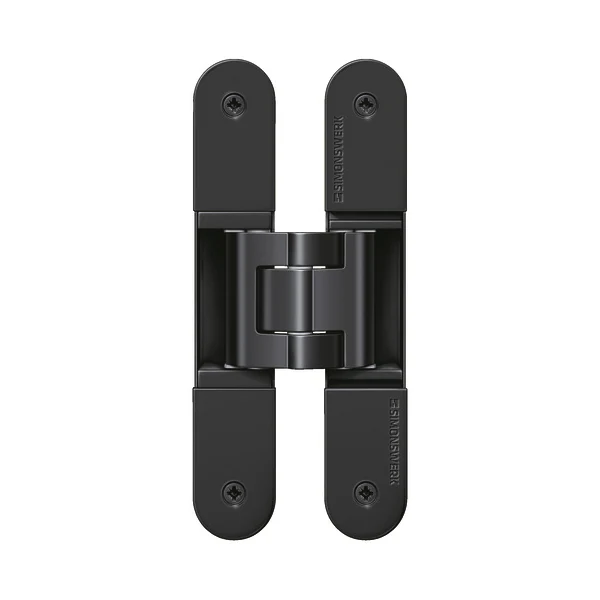

| SW 107 – Matt black RAL 9005 | 500003798 | €88.58 |
| SW 124 – Satin chrome look F1 | 500003801 | €74.88 |

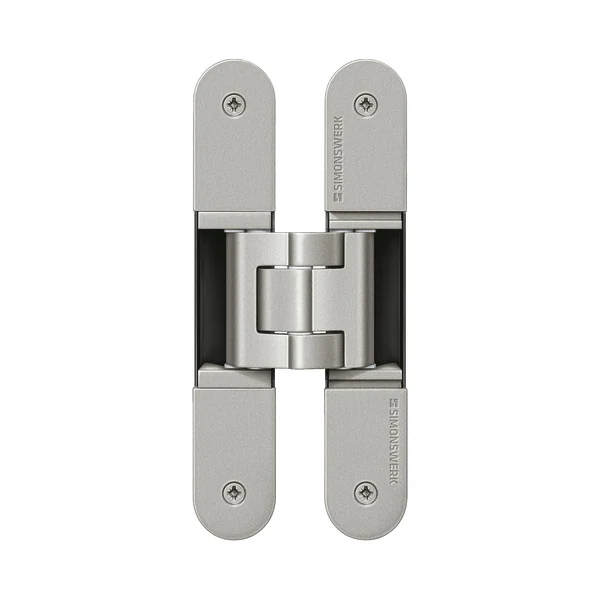

| SW 125 – Satin nickel look F2 | 500003803 | €74.88 |

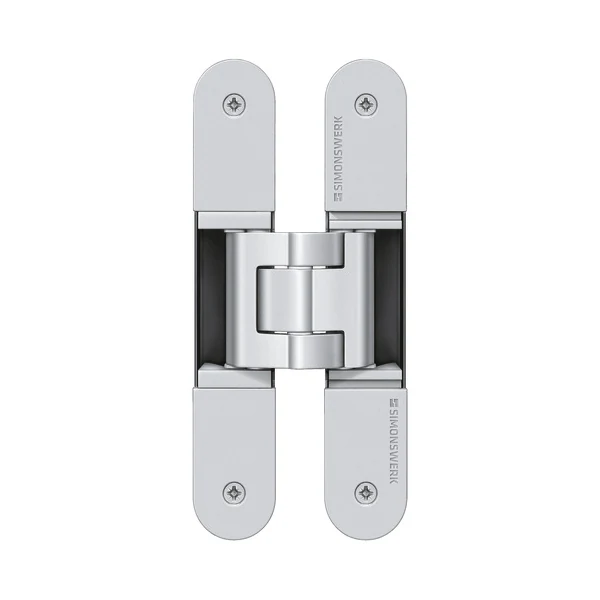

| SW 126 – Stainless steel look | 500003804 | €90.41 |

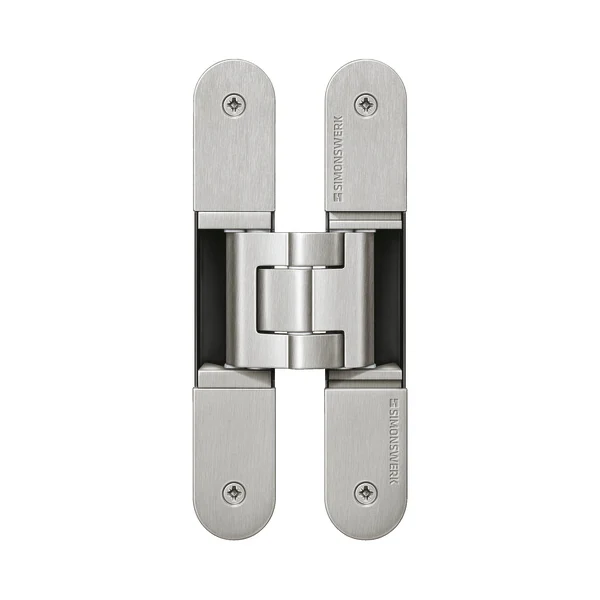

| SW 144 – Satin nickel | 500003805 | €128.75 |

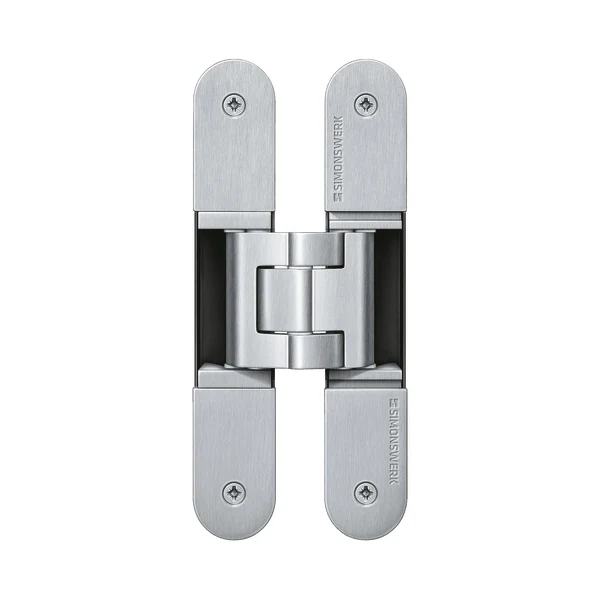

| SW 146 – Satin chrome | 500003806 | €128.75 |

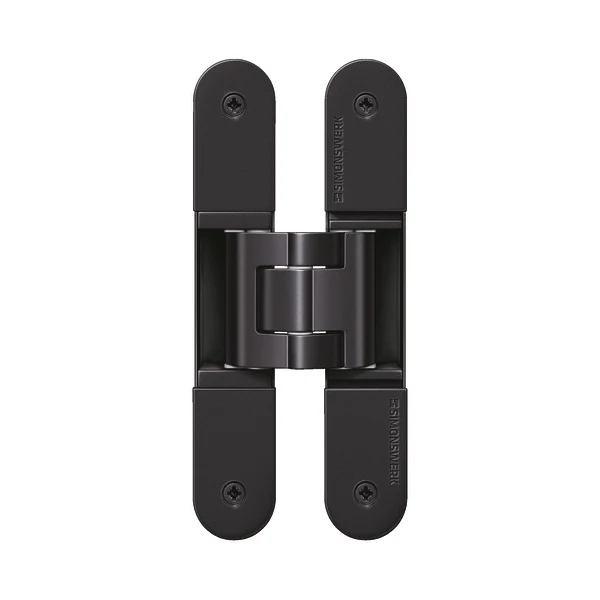

| SW 156 – Rustic Umber | 500003807 | €88.58 |

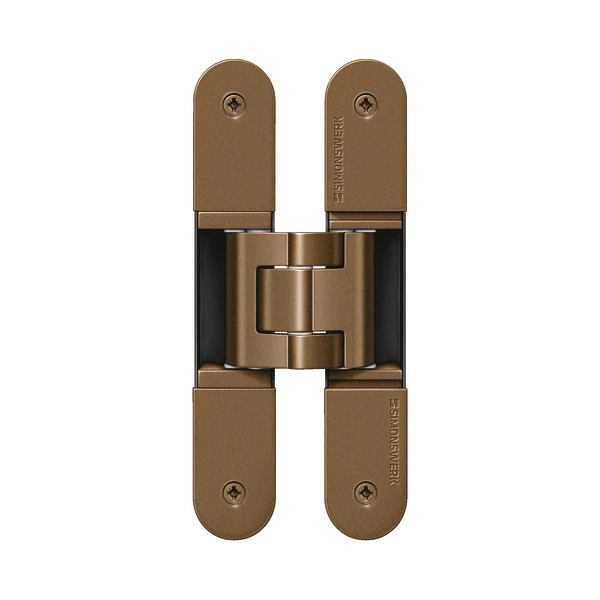

| SW 168 – Bronze metallic | 500003808 | €88.58 |

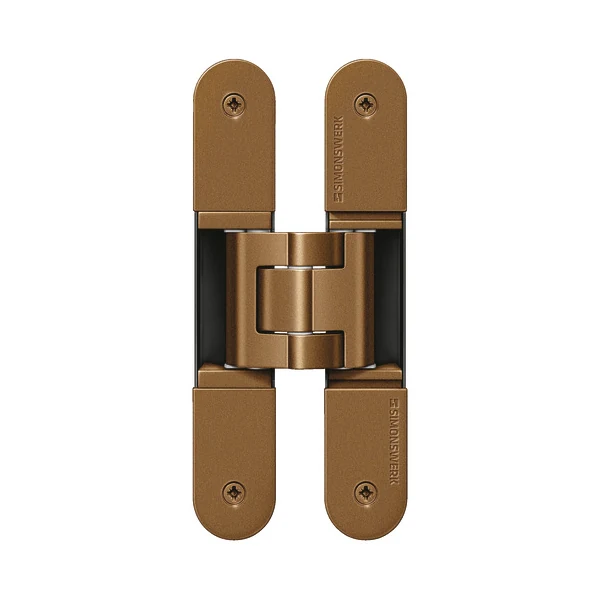

| SW 174 – Bronze finish | 500003809 | €125.09 |

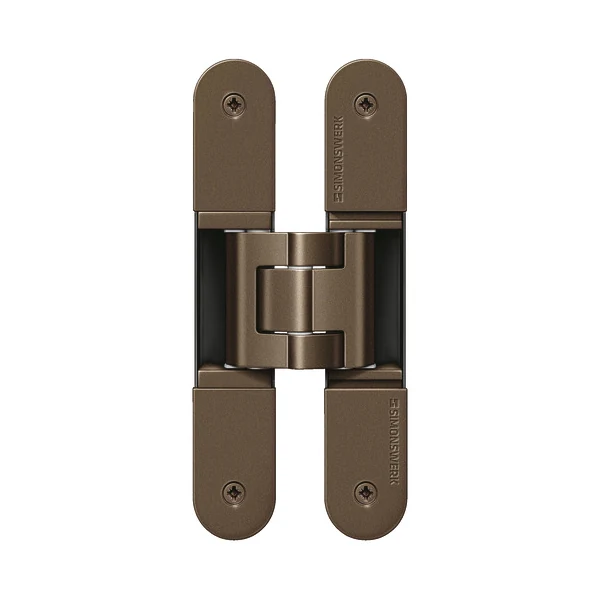

| SW 175 – Light bronze finish | 500003810 | €125.09 |

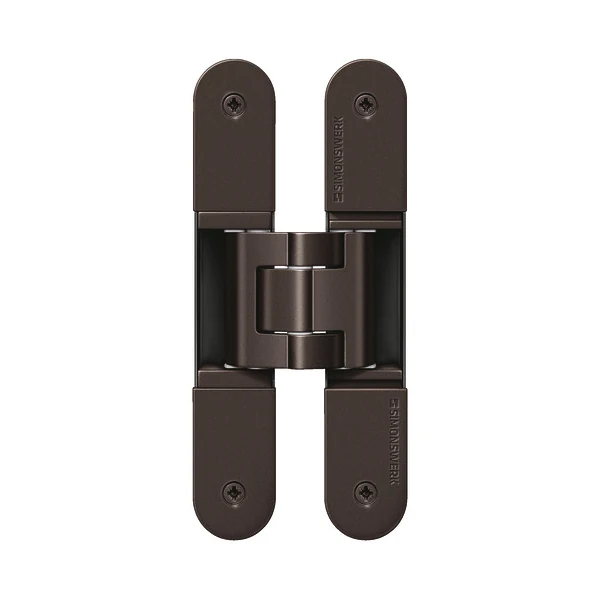

| SW 176 – Dark bronze finish | 500003811 | €125.09 |
Selection and installation
The stated capacity is not a rating for a single hinge. Door weight, dimensions and construction, hinge positioning and accessories require technical verification. Suitability for fire doors depends on the complete door assembly and its documentation. An additional stop may be needed to hold the door open at 180°.
Virgin Architects can help you check the model and finish for your project. Contact us before ordering to confirm availability, lead time and required accessories. The official images show the selectable finishes. Screen colour reproduction is indicative.
Official documentation
SIMONSWERK TE 340 3D technical datasheet (PDF) · Manufacturer product page
| SIMONSWERK finish | SW 030 – Polished brassed, SW 038 – Polished nickelled, SW 047 – Satin brassed, SW 070 – Traffic white RAL 9016, SW 107 – Matt black RAL 9005, SW 124 – Satin chrome look F1, SW 125 – Satin nickel look F2, SW 126 – Stainless steel look, SW 144 – Satin nickel, SW 146 – Satin chrome, SW 156 – Rustic Umber, SW 168 – Bronze metallic, SW 174 – Bronze finish, SW 175 – Light bronze finish, SW 176 – Dark bronze finish |
|---|---|
| BRAND | SIMONSWERK |
