Concealed body for single-outlet shower mixers — FIMA F2535

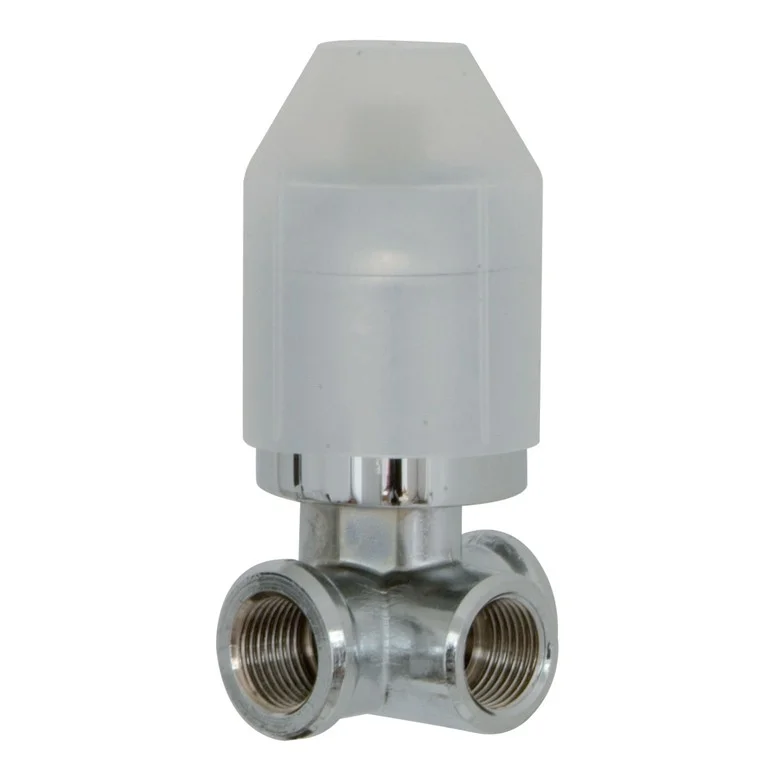

FIMA F2535 — concealed body for single-outlet shower mixers

Concealed body specified for compatible external trims such as F3763/1 and F3833/1. The manufacturer drawing identifies it as a shower mixer body; always check the complete external trim code.

Dimensions and preparation

G½ connections; 57 mm connection width; 104 mm overall longitudinal envelope; Ø41 mm protection; stated weight 0.5 kg.

Selecting external trim

The price is for the concealed body with the stated code. External trim with controls and finish is sold separately. Select only trim for which FIMA expressly specifies this body, checking the version and revision. Products from the same collection are not automatically interchangeable. This body has no finish selection or separate F1420 handle option; any such choices belong to the external trim.

Installation

Have a qualified installer check the layout. Follow orientation, inlet and outlet markings, and MIN/MAX references against the finished wall, allowing for tiles and adhesive. Secure the body, flush and leak-test following the manufacturer’s technical guidance, and retain protective covers until the external trim is fitted. The manufacturer provides a technical drawing for this code; no separate installation manual is listed in its Download section.

Documentation

Consult the dimensioned drawing before preparing the wall. PDFs are linked below; any DWG and 3D files remain linked to the official source.

Technical documents

• Technical drawing
