Two- or three-outlet Multibox concealed body — FIMA F4000

FIMA F4000 — two- or three-outlet multibox concealed body

Multibox body for two- or three-outlet systems, depending on the selected trim. The drawing specifies vertical installation; the body alone does not determine the number of operating functions.

Dimensions and preparation

G½ connections; 217 mm dimensioned overall height; installation range MIN 60 / MAX 90 mm.

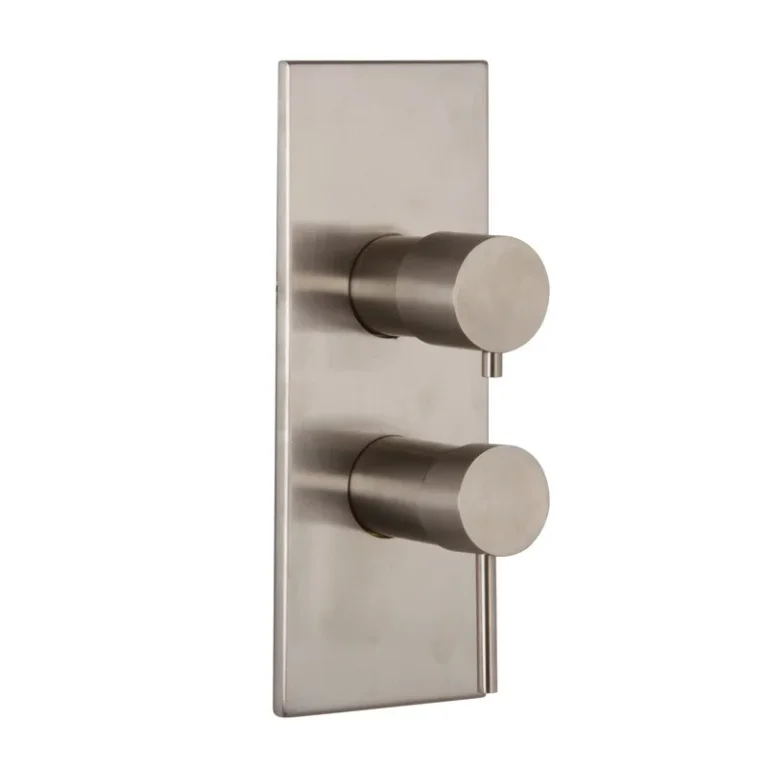

Selecting external trim

The price is for the concealed body with the stated code. External trim with controls and finish is sold separately. Select only trim for which FIMA expressly specifies this body, checking the version and revision. Products from the same collection are not automatically interchangeable. This body has no finish selection or separate F1420 handle option; any such choices belong to the external trim.

Installation

Have a qualified installer check the layout. Follow orientation, inlet and outlet markings, and MIN/MAX references against the finished wall, allowing for tiles and adhesive. Secure the body, follow the manual’s flushing and leak-test procedure, and retain protective covers until the external trim is fitted. The attached manual provides code-specific connection layouts and illustrated installation steps.

Documentation

Consult the installation instructions and dimensioned drawing before preparing the wall. PDFs are linked below; any DWG and 3D files remain linked to the official source.

Technical documents

• Installation instructions
• Technical drawing
• 3D file
