Tall three-hole washbasin mixer with swivel spout — FIMA Slide F5811/H

FIMA Slide F5811/H — configuration

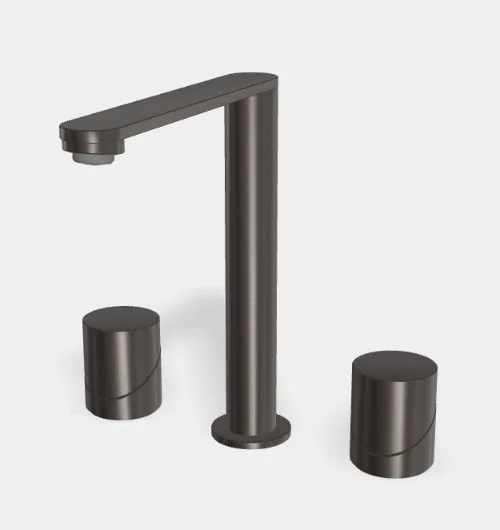

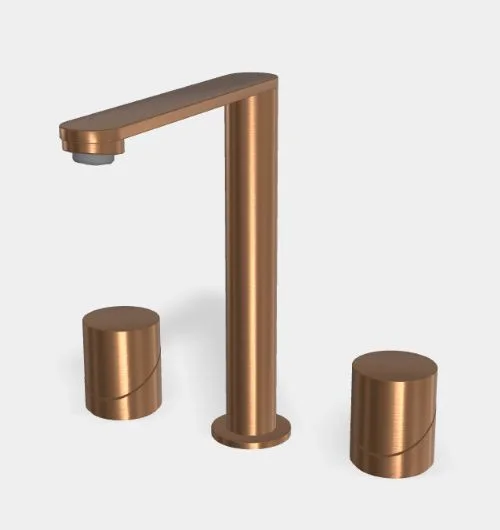

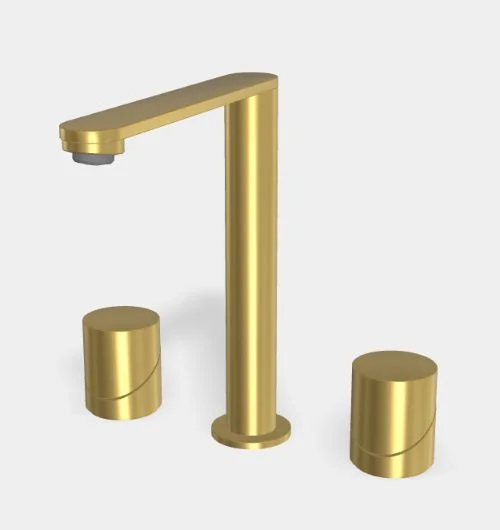

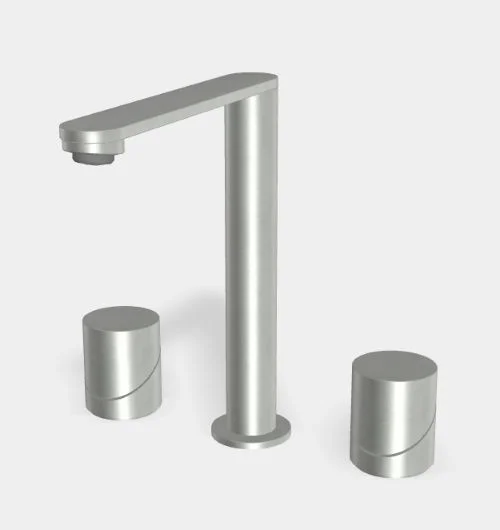

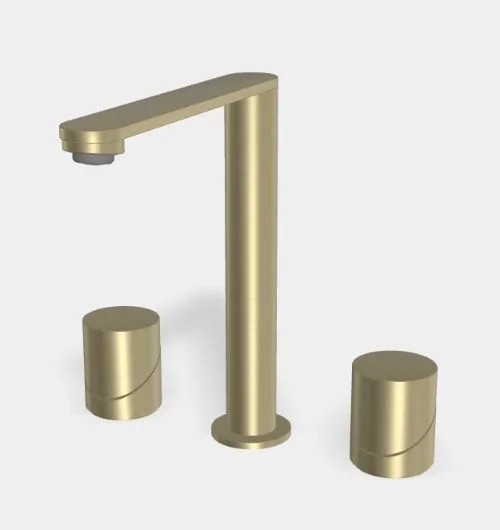

Three-hole washbasin mixer with swivel spout and two separate rotary on/off controls. The manufacturer specifies four supply hoses and a maximum flow rate of 5 litres/minute at 3 bar. Select the finish and version with or without waste.

Dimensions and deck installation

• Spout: overall height 215 mm, outlet height 196 mm, reach 161 mm.
• Spout column Ø30 mm; deck rosettes and controls Ø48 mm.
• Control height above the deck: 59 mm.
• The plan drawing shows 90 mm from the spout axis to each control.
• Control holes: minimum Ø28 mm; check the spout opening against the official drawing.
• Maximum deck thickness at the spout: 50 mm; range indicated at the controls: 15–75 mm.
• Flexible hose connections: G⅜ inch.
• Waste when selected: G1¼-inch stainless-steel click-clack waste, Ø65 mm cap, clamping range 5–67 mm.

Before drilling, compare the three-hole layout with the basin and check space underneath for hoses, controls and fixings. These dimensions apply specifically to F5811/H; do not use dimensions from another variant. The flow-rate figure at 3 bar is not a maximum operating-pressure rating.

Optional handles

The standard handles follow the selected finish. The eight F1420 alternatives in marble, wood and resin are sold separately as individual handles. Customising both controls requires two compatible F1420 handles; each handle product price is for one piece.

Technical documents

• Technical drawing
• Technical drawing in DWG
• 3D file
• Spare parts
