Tall two-hole washbasin mixer with swivel spout — FIMA Slide F5841/H

FIMA Slide F5841/H — selection and configuration

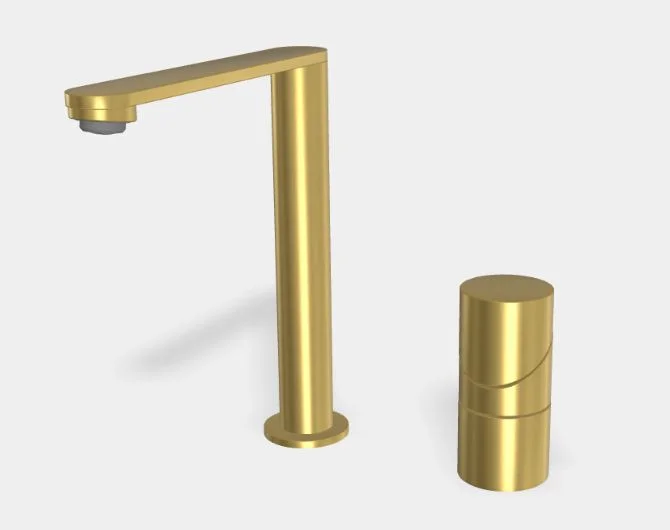

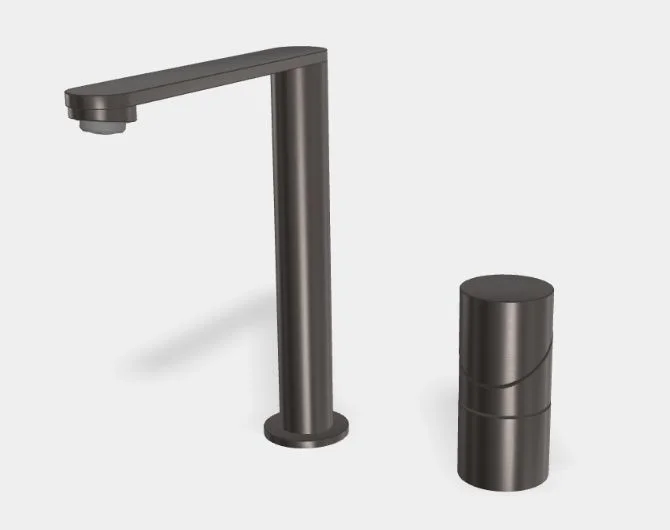

Two-hole washbasin mixer with swivel spout and separate control, cold-water opening and two supply hoses specified by the manufacturer. Select the finish and version with or without waste. The with-waste version includes a 1¼-inch stainless-steel click-clack waste; the without-waste version does not include it.

Dimensions and connections

• Spout: height above the deck 215 mm; outlet height 196 mm; reach from the spout axis to outlet centre 161 mm.
• Spout column diameter: 30 mm; deck rosettes: Ø48 mm.
• Separate control: height 102 mm; diameter Ø48 mm.
• Maximum deck thickness: 50 mm at the spout; 60 mm at the control.
• Spout mounting hole shown in the drawing: minimum Ø35.5 mm, maximum Ø40 mm.
• G½-inch connections as shown in the technical drawing.
• Maximum flow rate at 3 bar: 5 litres/minute.
• Waste when included: G1¼ inch; Ø65 mm cap; clamping range 5–67 mm.

Selection and installation

Check basin height, both hole positions, distance from the rim and space beneath the deck for connections and hoses. The spout and control are separate: do not assume a universal hole spacing; plan the layout using the manufacturer’s drawing and instructions. Check the dimensions for this exact version before drilling. The flow-rate figure at 3 bar is not a maximum operating-pressure rating.

Customisation

The standard handle matches the selected mixer finish. The eight F1420 handles listed below, in marble, wood or resin, are sold separately. Select one alternative handle material and verify the part code before ordering.

Technical documents

• Technical drawing
• Technical drawing in DWG
• 3D file
• Spare parts
