Thermostatic shower mixer with two- or three-outlet diverter — external trim — FIMA Spillo Steel F3079X7

FIMA Spillo Steel F3079X7 — thermostatic shower mixer with two- or three-outlet diverter — external trim

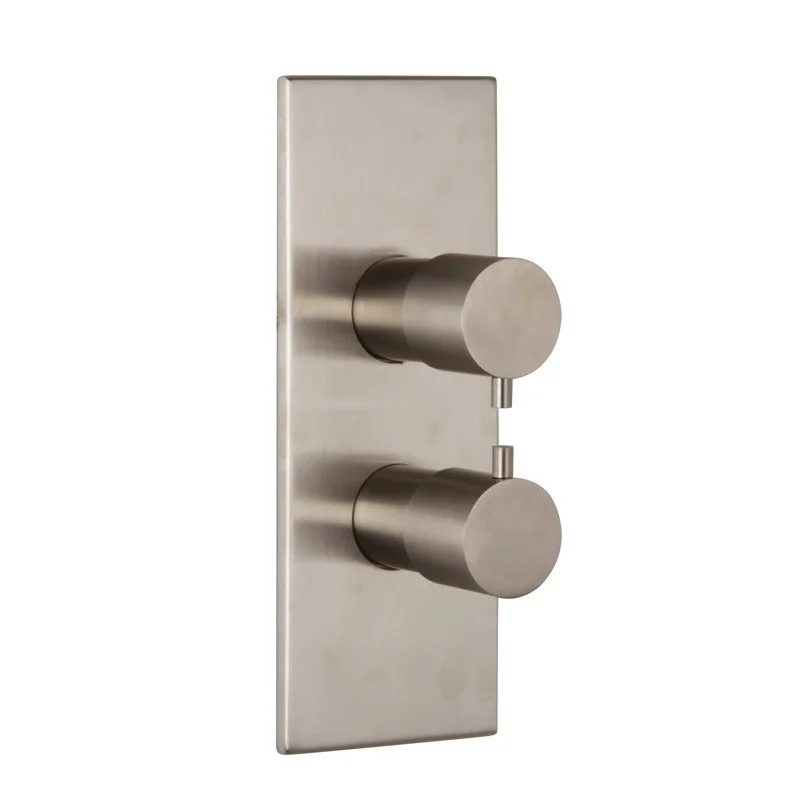

Spillo Steel thermostatic external trim with a two- or three-outlet diverter. Requires the separately sold F4000 body. Follow the manufacturer configuration for the number of water functions.

External trim dimensions

100 × 260 mm plate; 80 mm control centres; Ø48 mm controls. Upper external control projection MIN 53 / MAX 83 mm as dimensioned.

Projection dimensions describe the visible parts relative to the rosette or plate plane. For concealed installation depth, use the drawing for body F4000 and check the finished wall level.

Concealed body and contents

The price on this page is for the stainless steel external trim, code F3079X7INOX. Order body F4000 separately: it appears below among the required components, with one assembly required. Do not substitute a body based only on control shape or collection name. Showerhead, hand shower, hose and other shower outlets are not listed as included with this item.

Installation and use

Have a qualified installer prepare and fit the system. Before closing the wall, check the outlet layout, supplies and finished tile level; flush and leak-test following the body instructions. Protect visible parts until building work is complete. Clean with a soft cloth and products compatible with the finish; avoid abrasives.

Technical documents

The installation PDF linked by the manufacturer covers the body and compatible external trim. The dimensioned drawing and spare-parts diagram are for the exact code on this page; any 3D files remain linked to the official source.

Technical documents

• Installation instructions
• Technical drawing
• 3D file
• Spare parts
