Deck-mounted bath mixer without spout — FIMA Slide F5814/1

FIMA Slide F5814/1 — deck-mounted bath set

The three-hole set includes two controls, shower holder, stainless-steel hand shower and 1500 mm nylon hose. This version does not include a spout: have the installer verify the bath-filling arrangement specified for the project. The manufacturer describes the system as a double mixer. Select the finish to see the photograph, full product code and price for the standard configuration.

Dimensions and drilling

• Number of deck elements: 3.
• Two controls: 102 mm high, Ø48 mm; mounting hole minimum Ø35.5 mm and maximum Ø40 mm; maximum deck thickness 60 mm.
• Hand shower: Ø23 mm; overall height with holder above the deck 210 mm.
• Shower-holder base Ø56 mm; mounting hole minimum Ø27 mm and maximum Ø40 mm; deck clamping range 8–32 mm.
• The drawing layout shows successive centres of 150 mm: compare positioning with the bath, rim and below-deck clearances before drilling.

Installation and choosing the version

Check that each element can be fixed to the available deck thickness: the controls’ 60 mm maximum does not replace the shower holder’s 8–32 mm clamping range. Allow space beneath the rim for hoses, connections and hand-shower hose movement, with access for maintenance and connection checks. Have a qualified installer fit and leak-test the set, following the drawing for the exact code. The product page does not identify a mandatory separate concealed body for this item.

Optional F1420 handles

Standard handles follow the selected finish. The eight F1420 alternatives in marble, wood and resin are sold separately as individual pieces, each with its own price and photograph. Customising both controls requires two compatible handles. Options are Portoro MN, Calacatta gold MB, Guatemala MV, Lepanto MR, walnut LS, and ivory-effect R1, tortoiseshell-effect R2 and horn-effect R3 resin.

Finishes and care

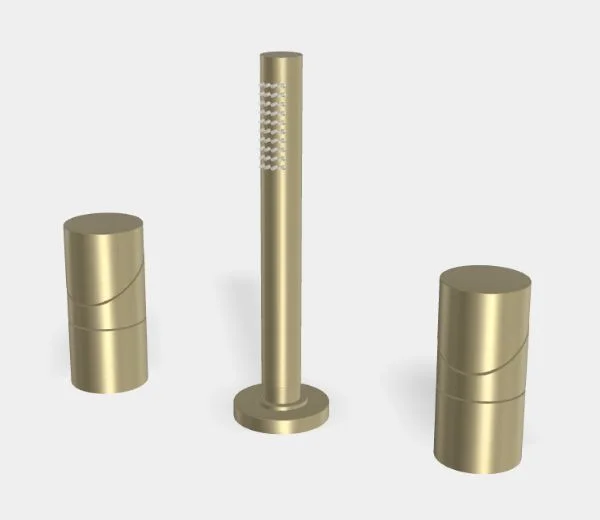

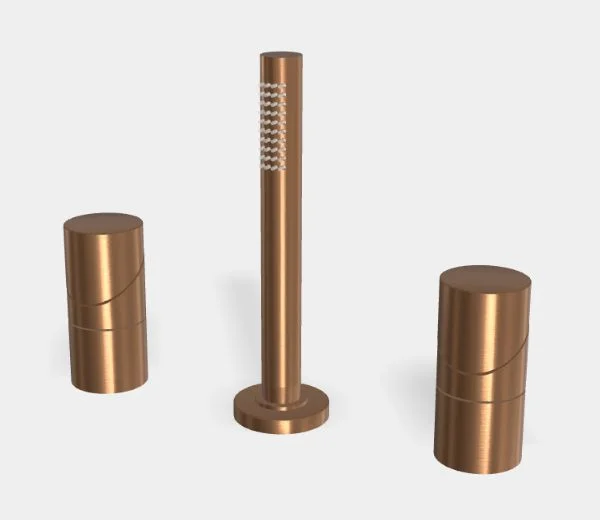

Six finishes: stainless steel, brushed black chrome, brushed gold, brushed bronze, Moka bronze and brushed champagne. Use a soft cloth and products compatible with the finish, avoiding abrasives. The dimensioned drawing and spare-parts diagram below help verify the configuration and identify components; official DWG and 3D files are available for design work.

Technical documents

• Technical drawing
• Technical drawing in DWG
• 3D file
• Spare parts
