Wall-mounted bath spout — FIMA Slide F5844

FIMA Slide F5844 — wall-mounted bath spout

A slim blade-shaped water outlet for the bath, coordinated with the Slide collection. Select a finish to see its matching photograph, full product code and price.

Dimensions and connection

• Overall projection: 277 mm.
• Dimension from the wall reference to the water-outlet axis: 257 mm.
• Spout width: 40 mm; outlet terminal Ø28 mm.
• Wall rosette Ø70 mm, 7 mm thick.
• G½-inch threaded connection.
• Weight stated in the technical drawing: 0.6 kg.

Configuration and installation

This item is the water spout only: it is not a mixer and does not include flow or temperature controls. Select the mixing and control system separately to suit the installation. FIMA does not specify a mandatory pairing code for F5844 on its product page; check compatibility against the project before ordering.

Before preparing the wall outlet, check that the 257 mm reach to the water-outlet axis places the jet correctly inside the bath, and check height and clearance above its rim. Provide a securely fixed G½ connection and have a qualified installer fit and leak-test the assembly using the drawing for the exact code.

Finishes and care

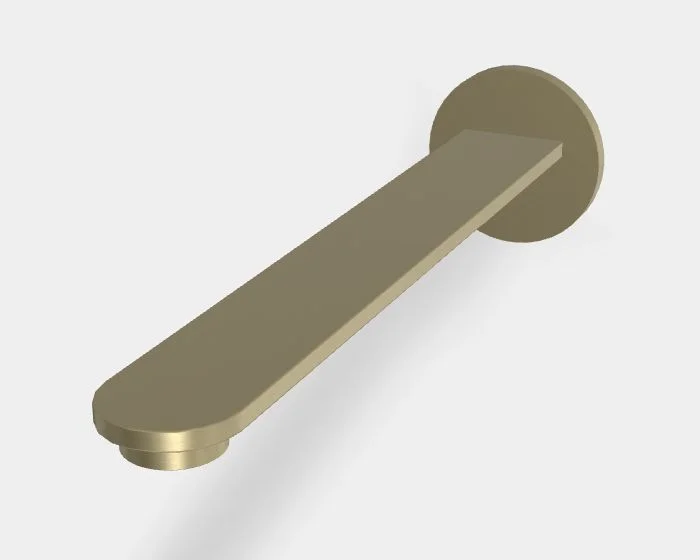

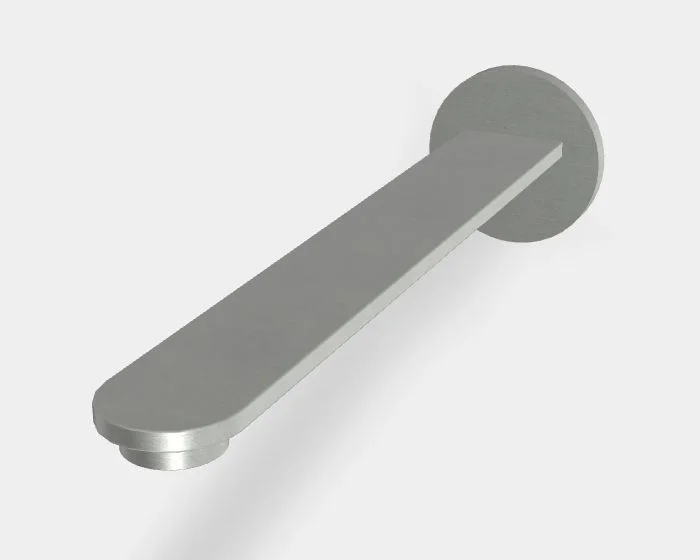

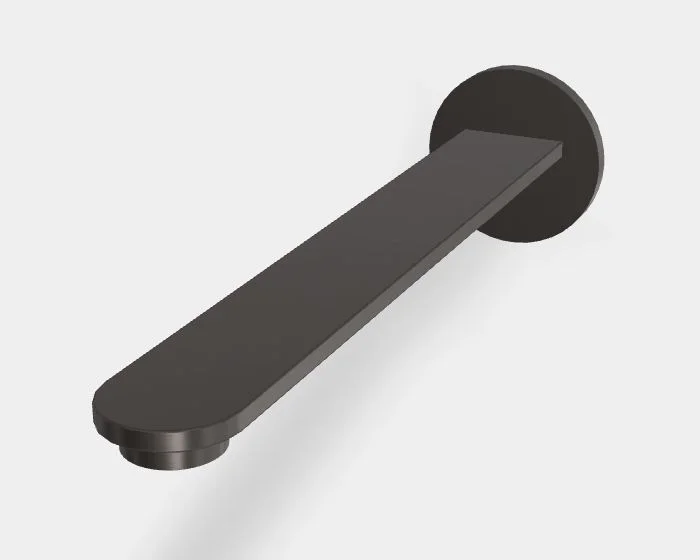

Stainless steel, brushed black chrome, brushed gold, brushed bronze, Moka bronze and brushed champagne. This spout does not use the F1420 customisation handles. Clean with a soft cloth and products compatible with the selected finish; avoid abrasives.

Manufacturer documentation

The dimensioned drawing and spare-parts diagram are available as PDFs, together with official DWG and 3D files. The manufacturer’s Download section does not provide a separate installation manual for this code.

Technical documents

• Technical drawing
• Technical drawing in DWG
• 3D file
• Spare parts
